The earliest signs of bridge coating failure often appear very quietly, such as a small rust mark on a girder, a blister spreading under old paint or a chalky surface on beams exposed to strong sunlight. During one inspection on a coastal bridge, I noticed a corroded spot that had grown far faster than expected because years of salt carried in the air kept attacking the steel. The structure itself was fine, but the protective system had already reached its limit. Moments like that make it clear that coatings are not just decoration, and they are part of how a bridge stays safe and predictable through years of changing weather, traffic vibration or chemical exposure.
Anyone who has worked with bridges knows corrosion behaves differently here compared to other steel structures. For example, the heavy traffic creates small but constant movements, coastal areas bring chloride in the air, industrial zones add pollutants or temperature shifts stress every coating layer. When the coating system matches the environment well, it acts like a shield that reduces maintenance needs and stabilizes long-term costs. But when the system is not suited to the site, the deterioration speeds up, inspections become more frequent and and the budget comes under pressure.
Before choosing a coating system or planning an application method, it helps to understand what bridge coating actually does and how each layer contributes to the bridge’s service life. Key functions, common systems, their costs and major standards form the basic knowledge for any team handling new builds or refurbishment projects. Many transport departments, engineering firms or contractors rely on this foundation to make decisions that keep bridges safe while keeping lifecycle budgets under control. Starting with these essentials makes the later choices in selection and application far clearer.
What Is Bridge Coating?
It often becomes clear what bridge coating truly means only when you stand close enough to see the way steel changes with time. Fresh steel looks strong, almost permanent, but anyone who has returned to the same bridge after a few years knows how fast moisture, salt and pollution can mark its surface. I have seen beams that began with only a thin brown line eventually develop pits deep enough to demand structural assessment. When you witness that progression more than once, you stop thinking of coating as the “paint” and start seeing it as the first line of defence for an entire asset.

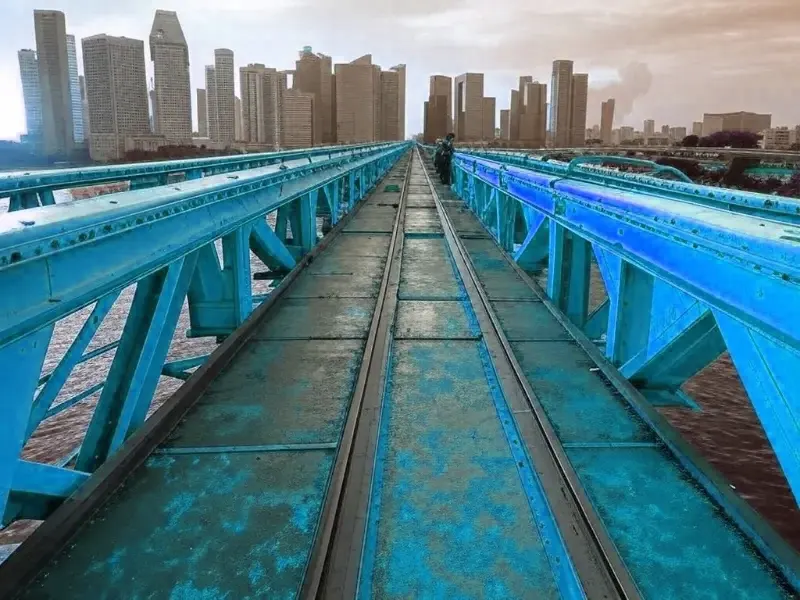

What Is Bridge Coating
Bridge coating is a protective system designed to slow or prevent the corrosion that naturally occurs when steel and concrete face the open environments. It creates a controlled barrier between the material and the elements that damage it. The system may look simple from a distance, but every layer serves a specific function. Some layers block oxygen and moisture, others use sacrificial metal particles to shift the corrosion reaction away from the steel and some shield the structure from ultraviolet light, abrasion or chemical exposure.
The role of a bridge coating goes far beyond appearance. It stabilises the structural reliability of the bridge, allows inspections to identify early issues without interference, supports predictable maintenance planning and helps reduce lifecycle costs when aligned well with environmental conditions. In public infrastructure, where bridges must perform for decades under the heavy loads and strict regulatory oversight, a rigid coating system is part of ensuring long-term safety. This is why transport agencies and engineering teams treat coating selection and maintenance as key components of bridge asset management rather than surface finishing work.
A good coating system also includes practical advantages for operations. It resists cracking under constant vibration, maintains adhesion through temperature swings and slows the spread of corrosion when small damages occur. On concrete bridges, coatings help control carbonation and chloride penetration, protecting rebar from hidden corrosion that can lead to spalling. Whether used on a steel girder, a concrete deck edge or a cable-stayed pylon, coating is a tool that combines chemistry, engineering judgement and compliance requirements into a single protective envelope.
What Are the Main Types of Bridge Coating Systems?
Anyone who has reviewed some old bridge maintenance files knows how differently coating systems behave once exposed to the real environments. Two bridges may share the same design but age in totally different ways simply because their coating systems respond differently to salt, sunlight, humidity or industrial pollution. I have seen some projects where a well-matched coating has kept steel clean for a decade, while a nearby bridge with a less suitable system needed major repairs after only three years. Those contrasts make it clear that bridge coatings are not interchangeable. They follow distinct chemistries and protective mechanisms, and understanding these differences is essential before comparing performance or cost.
Bridge coatings generally fall into two broad categories. Some serve the visual and basic protective function often associated with painting. Others belong to the engineered protective coatings designed for corrosion control under harsh outdoor exposure. Within these categories, several well-established systems appear repeatedly across major infrastructure projects because they offer predictable performance, clear test data and long records of field use. And the following systems represent the core technologies most commonly used in bridge construction and rehabilitation.

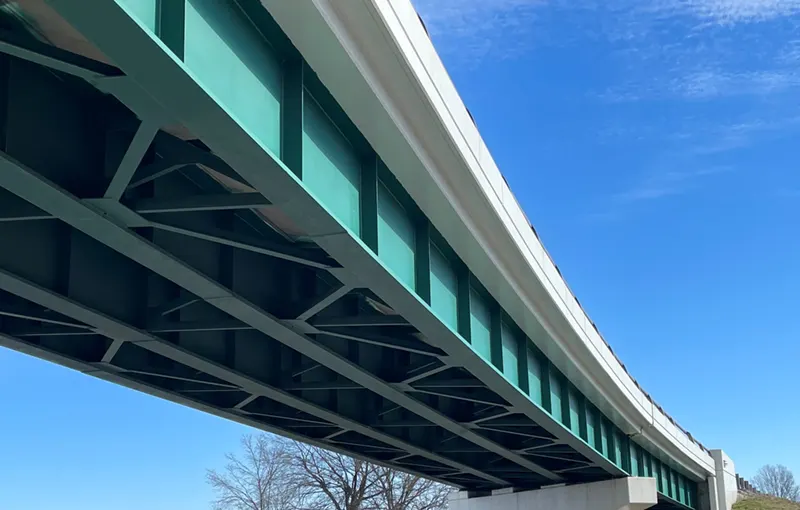

What Are the Main Types of Bridge Coating Systems
Zinc-rich coating systems.
Zinc-rich coatings are widely used on steel bridges because they keep protecting the metal even when the paint surface gets light scratches or small chips. The zinc inside the coating often “takes the hit” first, then slowing down rust and keeping the steel underneath safe. This makes them very useful in the coastal or industrial areas where steel rusts faster. These coatings usually act as the first layer in a multi-coat system and need proper surface preparation to perform well. Many transport departments trust them because they have been tested in many real projects for decades.
Epoxy primer + polyurethane topcoat systems.
This two-layer combination is one of the most common choices for bridges around the world. Because the epoxy primer sticks firmly to the steel or concrete and blocks out water and chemicals. And the polyurethane topcoat protects the surface from sunlight, colour fading and weather damage, keeping the bridge looking stable for many years. Together, they can create a strong and reliable system that performs well in harsh sunlight, freeze-thaw cycles or some areas with heavy wear. So engineers often choose this combination because it lasts long, is practical to apply and has many certified products available on the market.
Solvent-free coating systems.
Solvent-free epoxies are becoming more popular in repair projects and in tight spaces where ventilation is limited. They form thick and even layers and can handle slightly damp surfaces better than many traditional solvent-based paints. Because they contain very little solvent (close to zero), they release fewer emissions and help workers achieve the required film thickness quickly during short maintenance windows. These systems are often used on bridges over water or in busy city locations where environmental rules are strict and airflow is limited.
Polysiloxane coating systems.
Polysiloxane coatings offer excellent resistance to sunlight and weathering. They hold their colour and surface finish even in strong UV conditions where conventional polyurethane may slowly lose gloss. Many transport agencies usually use polysiloxane topcoats in long-term projects because they help delay the need for appearance or protection-related maintenance. They also tend to handle common pollutants better than many older topcoat systems.
Thermal spray metal coatings (TSA/TSZ).
Thermal spray coatings show up often on bridges that face strong salt spray or harsh industrial air. I have walked under some coastal spans where the painted areas showed normal ageing, but the thermal-sprayed sections still looked surprisingly steady. These metallic layers bond tightly to the steel and keep protecting it even if the surface gets small scratches. The application requires skilled crews, but many long-span or hard-to-reach bridges would choose TSA or TSZ because they stay reliable for a very long time with limited maintenance.
Duplex coating systems.
Some bridges use a mix of thermal spray and organic coatings, often called a duplex system. I have seen this chosen when owners want the corrosion resistance of TSA or TSZ but still need colour, gloss or UV protection on the surface. In practice, the metal layer handles corrosion while the epoxy or polyurethane top layers take care of weathering. This combination is very common on structures designed for long service intervals or in places where frequent closures for maintenance are difficult.
Understanding the strengths of each system makes later decisions on cost, standards and suitability far smarter. Once the protective mechanisms become clear, it becomes easier to recognise which system fits a coastal highway, a mountain bridge, an urban overpass or a long-span river crossing.
What Is the Cost of Bridge Coating Systems?
- Material Cost. Different coating systems have different material prices because of their chemistry and the film thickness they need. The Zinc-rich primers often sit at the higher end due to their metallic content, especially when some high-performance systems are required for the coastal or industrial areas. Epoxy and polyurethane systems cover a broad cost range depending on the formulation and durability grade. Polysiloxane topcoats usually cost more than standard polyurethane because of their weathering performance. Solvent-free epoxies often have a higher price per litre but can reduce the number of coats in some maintenance situations, helping offset the higher unit cost. These differences mean material selection should match the environment, the required service life and the maintenance strategy. So choosing a cheaper formulation may save money at procurement but often leads to more frequent repairs later on.
- Application and Surface Preparation Cost. Surface preparation is usually the biggest cost driver in bridge coating work. Achieving a surface standard such as SSPC SP10 or SP6 often requires skilled workers, specialised equipment and controlled conditions. Access structures, such as scaffolding, suspended platforms or lifts, often become one of the biggest cost drivers on long-span or high-elevation bridges. Labour prices also shift a lot between different regions, and many government projects require certified applicators, which pushes the budget higher. On top of that, weather can slow everything down, like the frequent rain or high humidity leads to delays that quickly add to the final cost. Application costs vary with the number of coats, the required dry film thickness and whether the coating provides long recoat windows. Also, multi-coat systems take more time and demand more labour, while faster-curing or high-build systems can reduce time on site.
- Maintenance and Lifecycle Cost. Lifecycle cost often determines whether a coating system is considered successful. A coating that lasts twenty years without major work is far more economical than a cheaper one that requires repairs after five. Transport agencies look closely at lifecycle cost because maintenance involves lane closures, inspection teams, traffic control and safety arrangements – costs that quickly exceed the material price itself. Coating performance also affects inspection frequency. Systems with stronger UV resistance, corrosion tolerance and mechanical durability usually need fewer interventions each year. This is why long-term projects often select systems such as epoxy with a polysiloxane topcoat, or zinc-rich primers in higher-risk environments.
| Coating System Type | Material Cost Level | Prep & Application Cost | Typical Maintenance Cycle | Notes |
|---|---|---|---|---|
| Zinc-rich systems | Medium to high | High (needs the clean steel) | Long; strong corrosion defense | Preferred for steel bridges in harsh environments |
| Epoxy + Polyurethane | Medium | Medium to high | Medium to long | Widely used for balanced performance and availability |
| Solvent-free epoxy | High | Medium | Medium | Useful for refurbishment and areas with limited ventilation |
| Polysiloxane topcoat systems | High | Medium | Long | Strong UV resistance and colour retention |
What Certifications and Standards Are Required for Bridge Coatings?
Anyone who has worked on public infrastructure knows that bridge coating choices are rarely made on preference alone. Once a transport authority or government tender is involved, the question quickly becomes “what is approved and fully documented.” I’ve seen strong-performing coatings ruled out simply because they didn’t meet a certain ISO category or weren’t listed on a state DOT’s qualified products list. Standards help procurement teams, contractors or inspectors keep projects predictable, traceable and safe, especially when the coating must last for decades under public responsibility.
Bridge coatings are selected within a framework set by global standards bodies and national agencies. These standards define how a coating should perform, how long it should last and what tests it must pass before being used on critical infrastructure. When everyone understands the standards, specification, tendering and inspection become far easier to navigate.
- ISO 12944.
ISO 12944 is one of the most widely used standards for protecting steel structures. It classifies environments by corrosion risk, from mild indoor conditions to extremely aggressive coastal or industrial zones, and sets durability expectations for full coating systems. So engineers can use these categories to make sure the system aligns with the bridge’s real exposure. The value of this standard is that it gives projects around the world a shared language for discussing corrosion. - NACE standards.
NACE standards concentrate on corrosion control and surface preparation – two areas that have significant influence on long-term coating performance. Many transport agencies rely on NACE to define how steel should be cleaned and how the finished surface should be inspected. Certified NACE inspectors often oversee large bridge projects to confirm that preparation, dry film thickness and application conditions stay within specification. These standards help maintain quality and reduce the risk of early failure in demanding environments. - AASHTO guidelines.
AASHTO develops specifications widely used across North America’s transportation infrastructure. Coating systems approved under AASHTO guidelines undergo rigorous testing for adhesion, corrosion resistance and weathering. When a project falls under a state DOT, AASHTO often sets the minimum performance requirements for the primer, intermediate and topcoat. Contractors and suppliers follow these requirements closely to meet regional compliance and ensure consistent results. - ASTM D16 and related ASTM methods.
ASTM provides the test methods used to evaluate key coating properties such as the color retention, abrasion resistance, corrosion performance and application quality. ASTM D16 defines the terminology and classification system used throughout the industry. Other ASTM methods, such as the ASTM D610 for rust grade or the ASTM D1654 for scribe creep, greatly help engineers verify how a coating behaves under controlled conditions before it’s used on an actual bridge.
Understanding these standards helps project teams interpret technical data sheets, plan inspection steps and confirm whether a coating system is truly suited to a bridge environment. They also shape tender documents and procurement decisions, making them a central part of the coating selection process. With these standards clear, it becomes easier to understand how government agencies define approved systems, that is the topic that follows in this foundation chapter.
What Coating Systems Are Commonly Used by Transport Agencies?
Most coating decisions become much clearer once a government approval framework enters the process. Public infrastructure projects rarely rely on marketing claims or generic industrial data. They follow lists maintained by transport authorities, shaped by years of field performance, accelerated testing and inspection feedback. I have seen contractors change systems overnight simply because a state DOT updated its qualified products list. In this environment, the question is not “what coating is good” but “what coating has already proven itself under similar conditions and is officially recognized by the authority overseeing the project.”
Several well-established approval systems exist in many regions. Their structure varies, but their purpose is the same, that is to reduce risk, simplify tendering and ensure the chosen materials can meet the long-term performance expectations of public agencies.
Transportation bridge coating systems
United States Department of Transportation (DOT) Systems.
Across the United States, each state DOT maintains its own qualified products list (QPL) for bridge coatings. Commonly approved systems include zinc-rich primers combined with epoxy intermediates and polyurethane or polysiloxane topcoats. These combinations have shown the reliable performance across inland freeze-thaw regions, industrial zones and coastal environments.
Products from some major international manufacturers commonly appear across different state QPLs because their data packages remain consistent across regions. Before approval, coatings undergo tests for salt spray performance, UV resistance, adhesion, abrasion and long-term weathering. Projects supported by federal or state funding often require strict compliance with these lists.
Japan MLIT Approved Systems.
Japan’s Ministry of Land, Infrastructure, Transport and Tourism (MLIT) follows a structured approval process built on decades of bridge monitoring. Many MLIT specifications use multi-layer systems based on the inorganic zinc-rich primers, high-build epoxies and polyurethane topcoats. These systems can offer strong resistance to UV exposure, moisture, chloride-rich coastal air and seismic stress.
Manufacturers such as Nippon Paint, Kansai Paint and Chugoku Marine often supply these systems because they meet Japanese Industrial Standards and pass the ministry’s performance testing. Evaluations typically reflect Japan’s demanding coastal and high-humidity environments.
China Transport and Infrastructure Agencies.
Transport and infrastructure agencies in China commonly use systems built around epoxy primers, epoxy intermediate coats and polyurethane or fluorocarbon topcoats for long-term durability. These systems are widely applied on expressway bridges, river crossings and large interchanges. In coastal or high-humidity regions, inorganic zinc-rich primers or high-solids coatings are selected to extend maintenance intervals.
Approval usually depends on laboratory testing, documented project performance and evaluation by engineering consultants. Both international brands and qualified domestic manufacturers supply systems that meet the requirements of major public works.
| Region | Authority | Common Approved System Types | Environmental Focus | Typical Bridge Applications |
|---|---|---|---|---|
| United States | State DOTs | Zinc-rich primer with epoxy and polyurethane or polysiloxane | Multi-climate durability, corrosion control | Highway bridges, river crossings, urban structures |
| Japan | MLIT | Inorganic zinc-rich plus epoxy and polyurethane | UV exposure, coastal humidity, seismic conditions | Coastal bridges, urban viaducts, steel truss bridges |
| China | Transport agencies | Epoxy primer and intermediate with polyurethane or fluorocarbon topcoat | Salt spray, humidity, industrial pollutants | Expressway interchanges, sea-crossing bridges, urban elevated roads |
Government-approved systems reassure stakeholders that each layer in the coating system has been tested under familiar conditions. These approvals not just reduce the technical uncertainty but also streamline procurement and inspection.
Bridge coating is not just a surface detail but part of the structure’s long-term defence system. It works quietly, often unnoticed, until an inspection shows whether the early decisions were right.
Standards and approval frameworks add another layer of certainty. ISO categories, NACE inspection practices, AASHTO guidelines and transport-authority lists give teams a common language for comparing materials and planning budgets. When a system aligns with these requirements, decisions become much easier to justify and long-term expectations more predictable.
As the work moves from overall understanding to real project decisions, teams often turn to shared industry resources to check certified systems or supplier references without searching across multiple sources. Platforms such as CoatingsDirectory are part of those resources and can quietly support that early review.
FAQs
Are bridge coatings the same as standard industrial coatings?
Not really, they face different stresses. Bridge coatings should deal with constant movement, open-air weather or longer exposure cycles. Industrial coatings often protect structures with more stable conditions, so their performance requirements are not always interchangeable.
Why do bridge coatings fail earlier than expected?
They usually fail because the environment is harsher than what the system was designed for.
Many exposure conditions such as the humidity, salt, sunlight or continuous movement can age a coating faster than anticipated. When the selected system does not match the bridge’s real conditions, early deterioration is common.
Do concrete bridges also need protective coatings?
Yes, the concrete benefits much from protection too. Because moisture or chlorides would slowly migrate through concrete and eventually reach the reinforcement. Coatings can slow this penetration, reduce staining and improve durability for exposed concrete surfaces.
How long can a typical bridge coating last?
It depends on the its exposure and maintenance. A well-matched system can work well for many years if applied and maintained properly, but lifespan changes widely with the climate, sunlight intensity, salt levels or inspection frequency. No single number applies to all bridges.
Why do government agencies specify approved coating systems?
They usually rely on systems with proven and repeatable performance. Transport authorities choose materials that have documented results in the long-term public projects. So, using the approved systems greatly reduces risk, simplifies oversight and ensures consistent protection across different bridges and contractors.
